Canvas Neo Remixte 1

DETAILS

• Platform

  Canvas Neo
• Model Name

  Canvas Neo Remixte 1
• Model Code

  C64170U SMU

FRAMESET

• Frame

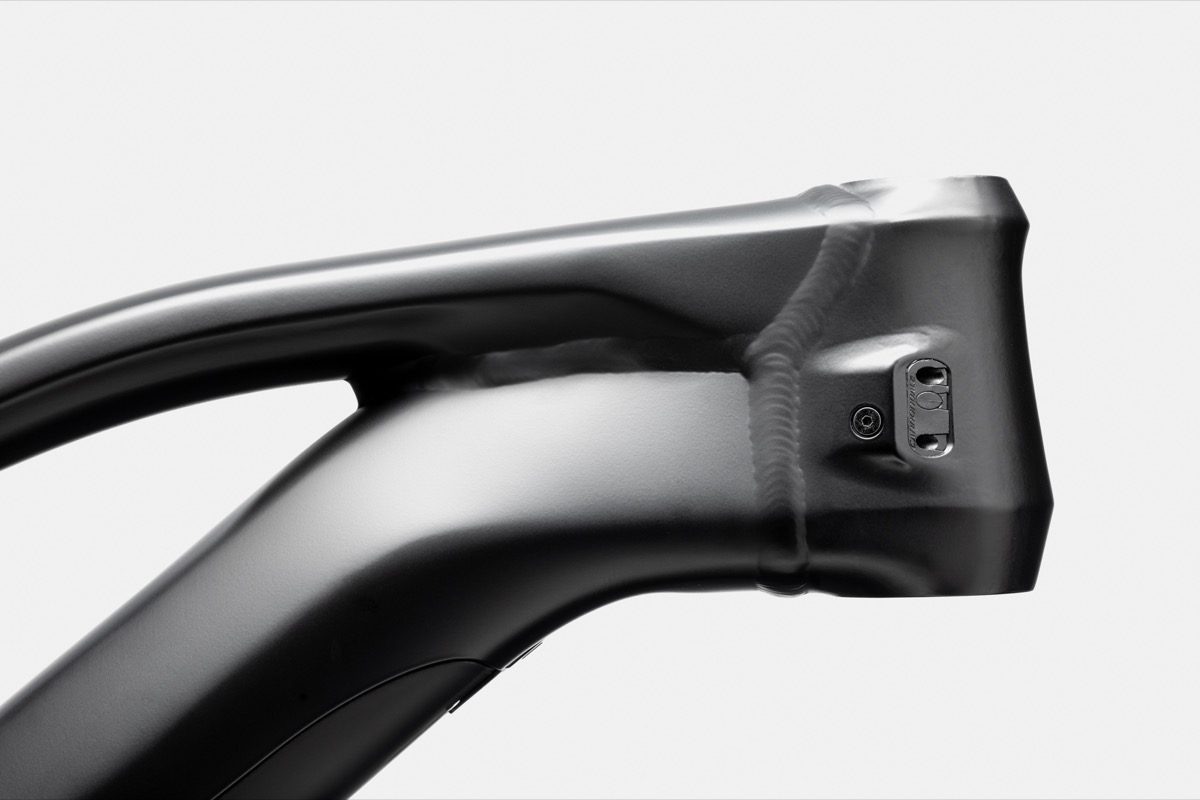

  Remixte Step-Thru, SmartForm C1 Alloy, removable downtube battery, SAVE, tapered headtube, internal cable routing, Ai offset drivetrain, 148x12mm thru-axle, post mount disc, integrated speed sensor, KickFlip hidden kickstand mount, motor protection, lock mount

  •
  •
  •
  •
  •
  •
  •
  •
• Fork

  BallisTec Carbon, 1-1/8″ to 1.5″ tapered steerer, OutFront 55mm offset, post mount disc, 15x110mm thru-axle, hidden cable routing
• Headset

  Integrated, 1-1/8 to 1.5″, sealed angular contact bearings (Integrated steer stop size small only)

E-SYSTEM

• Drive Unit

  Bosch Performance Line Speed 250W (28mph)
• Battery

  Bosch PowerTube 500Wh
• Charger

  Bosch 4a
• Display

  Bosch Purion

DRIVETRAIN

• Rear Derailleur

  Shimano Deore GS
• Shifters

  Shimano Deore, 10-speed
• Chain

  Shimano HG54, 10-speed
• Crank

  Bosch Gen4 w/ custom Ai offset, 46T
• Rear Cogs

  Shimano HG500, 11-42, 10-speed

BRAKES

• Brakes

  Shimano Deore M6000 hydro disc, 203/180mm RT30 rotors
• Brake Levers

  Shimano Deore M6000 hydro disc

WHEELS

• Rims

  WTB STX i29 TCS, 32h, tubeless ready
• Front Hub

  Shimano MT400 15×110
• Rear Hub

  Shimano MT400 12×148
• Spokes

  DT Swiss Champion
• Tires

  Schwalbe G-One Speed Performance, 29 x 2.35″, RaceGuard, tubeless ready
• Tire Size

  2.35
• Wheel Size

  29

COMPONENTS

• Handlebar

  Cannondale 3, 6061 double-butted, 20mm rise, 9° back, 720mm
• Stem

  Cannondale 3, 3D Forged 6061 Alloy, 1-1/8″, 31.8, 0-degree
• Grips

  Cannondale Locking Grips
• Saddle

  Cannondale Ergo Urban
• Seatpost

  6061 Alloy, 31.6 x 350mm
